Standard, non-clutched drive on the ME10 Note, in comparison with the standard type, the much smaller diameter of the 2-step driven pulley on the countershaft
|
|
|
|
|
|
|
|
![](img12.jpg) |
|
|
|
|
|
|
Boxford ME10 with the optional countershaft clutch fitted
|
|
|
|
|
|
|
|
|
|
|
|
|
|
![](img13.jpg) |
|
|
|
|
|
|
Like the Myford Super 7 and some other small lathes, the clutch was built into the large countershaft driven pulley
|
|
|
|
|
|
|
|
![](img14.jpg) |
|
|
|
|
|
|
|
|
|
|
![](img15.jpg) |
|
|
|
|
|
In order to achieve the reduction in back-to-front depth compared with the original rear-drive models, the ME10 used a different design of countershaft. It was available in a standard form without a clutch or, at a considerable extra cost, with. The assembly consisted of two brackets bolted to the back of the headstock with each carrying an "ear" holding an inwards-facing stud from which pivoted a casting that formed, at its rear, two bearing housings. The whole assembly was hinged to allow the V-belt to be moved from pulley to pulley to change speeds.
|
|
|
|
|
|
|
|
![](img16.jpg) |
|
|
|
|
|
A robust bracing bar was used to tie the two bearing housings together
|
|
|
|
|
|
|
|
|
|
|
|
|
|
![](img17.jpg) |
|
|
|
|
|
|

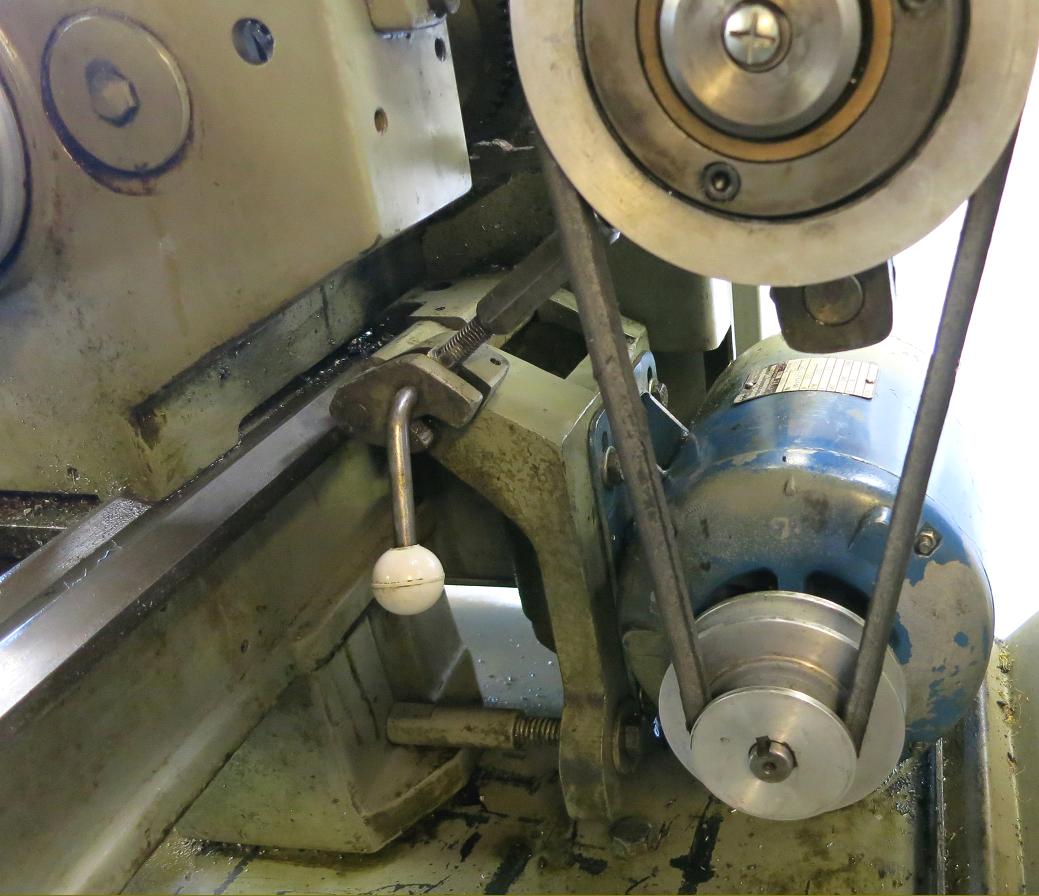

The lower part of the countershaft consisted of a block of cast iron secured by a single clamp bolt to the bed V-way at the back of headstock; the block was bored through to take a bar, from which hung the slotted motor-support plate - this being secured at the bottom by a single shaft that incorporated a long compression spring - presumably to allow some "give" in the system. The "swing head" that carried the 4-step "A-section" V-belt pulley was tightened and relaxed by usual adjustable, over-centre mechanism with a right-and-left-hand threaded hexagon block fitted with a rather short and so awkward-to-manipulate ball-ended handle (the same fitting can be found on the original 1933 South Bend).
|
|
|
|
|
|
|
|
![](img18.jpg) |
|
|
|
|
|
|
Lower mounting point for the spring-loaded motor-support plate
|
|
|
|
|
|
|
|
![](img19.jpg) |
|
|
|
|
|
The splined fitting of the clutch operating handle allowed it to be detached before the top cover was opened and also easily adjusted to suit the operator
|
|
|
|
|
|
|
|
|
|
|
|
|
|
![](img20.jpg) |
|
|
|
|
|
|
Standard drive system without a clutch
|
|
|
|
|
|
|
|
![](img21.jpg) |
|
|
|
|
|
|
Another view of the non-clutched drive.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
