Robert Speck Milling Machine

Continued on Page 2

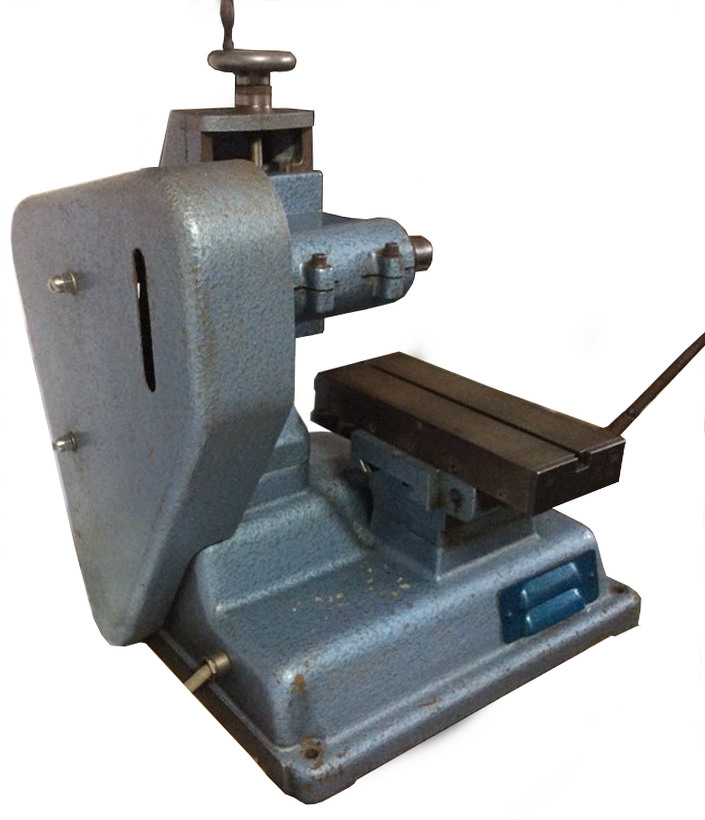

Built in Germany - probably during the 1950s - the Robert Speck miniature milling machine was built in both "stub" horizontal and vertical versions - former being shown at the top of the page and the latter towards the bottom.
Robert Speck was based in Schwenningen Neckar, a town in the south-west of Germany, once promoted as "the greatest watch city in the world" and well-known for not only the manufacture of watches and clocks, but also precision machine tools and associated engineering equipment.
Looking not unlike the rather more versatile (though very high-speed) American Precise miller, the Speck horizontal was a very compact package - the single T-slot table being around 250 mm by 100 mm with a longitudinally travel of 128 mm. Of a very heavy build for its size, it was capable, according to users, of taking a reasonably heavy cut - however, as the horizontal version had no supporting overarm, work would have been limited to slower rates of removal and, with the longitudinal feed by lever only, its main use would have been for simple production jobs rather than creative tool-making.
Flange-mounted against a side face inside the base casting, the standard-fit 3-phase motor drove the spindle though a 3-step, A-section V-belt pulley to an intermediate countershaft and then, via a 2-step pulley, to the main spindle - the whole drive assembly being guarded by a cast aluminium cover and neatly incorporated into the body of the miller, so making the machine entirely self-contained. The range of speeds available ran from 640 through 980, 1110 to a maximum of 1570 r.p.m.
The head, which took 10 mm Schaublin collets, was moved up and down the face of the column by a screw feed with both that - and the table's in-and-out feed - fitted with bevelled-face micrometer dials able to be zeroed by handy, knurled-edge setting rings.
Of a much simpler design, the vertical model used the same table as the horizontal but a slightly different head - one that looks to have redesigned to improve its appearance if not function.  Oddly, for a precision machine, head travel was controlled by a lever not a fine-thread screw with adjustable screw stops provided to limit travel as necessary. Although the table travel was by screw fed in both directions, from the fittings surround it, it appears that the option was also available of feed by levers.
With its clean, smooth castings and fine cosmetic finish, the Speck miller was of the usual, high-quality German design and manufacture and today remains a sought-after machine, especially the vertical version. Prices are high with immaculate, low-hours vertical models commanding over US$3000.
Other simple "stub" horizontal milling machines made in Germany over many decades  included one model of the  JMB range, Wolf Jahn and the Rumag No.0 and No.1, while from other countries came the CST of Milan (usually found badged as "Astra") the mysterious EPEX, the Swiss Shaffner W1Mikron, some versions of the Schaublin SV12, the English BensonDenbigh H1, Timbell & Wight and Britannia No.10, the Swedish Hogbo and several American examples including the Burke No.0 and No.1Carter & HakesRockford No.1, Jones kit-built No.1 Plain,  Baker (possibly still made in Taiwan as the Hong Da),  Ames, and the Waltham "Milling Stand". In addition many makers of "bench precision" lathes offered a simple conversion to stub horizontal milling, the table being mounted outboard of the headstock's left-hand face -  these makers including Pratt & Whitney, The Waltham Machine Works, Rivett, Cataract, Ames and Cowan..


With the cast-aluminium belt-drive guard removed



3-phase motor flange-mounted inside the base casting. The capacitor is to trick the motor into running on a 1-phase supply


An immaculate, little used example of the Robert Speck miniature vertical miller - but lacking its motor drive system
