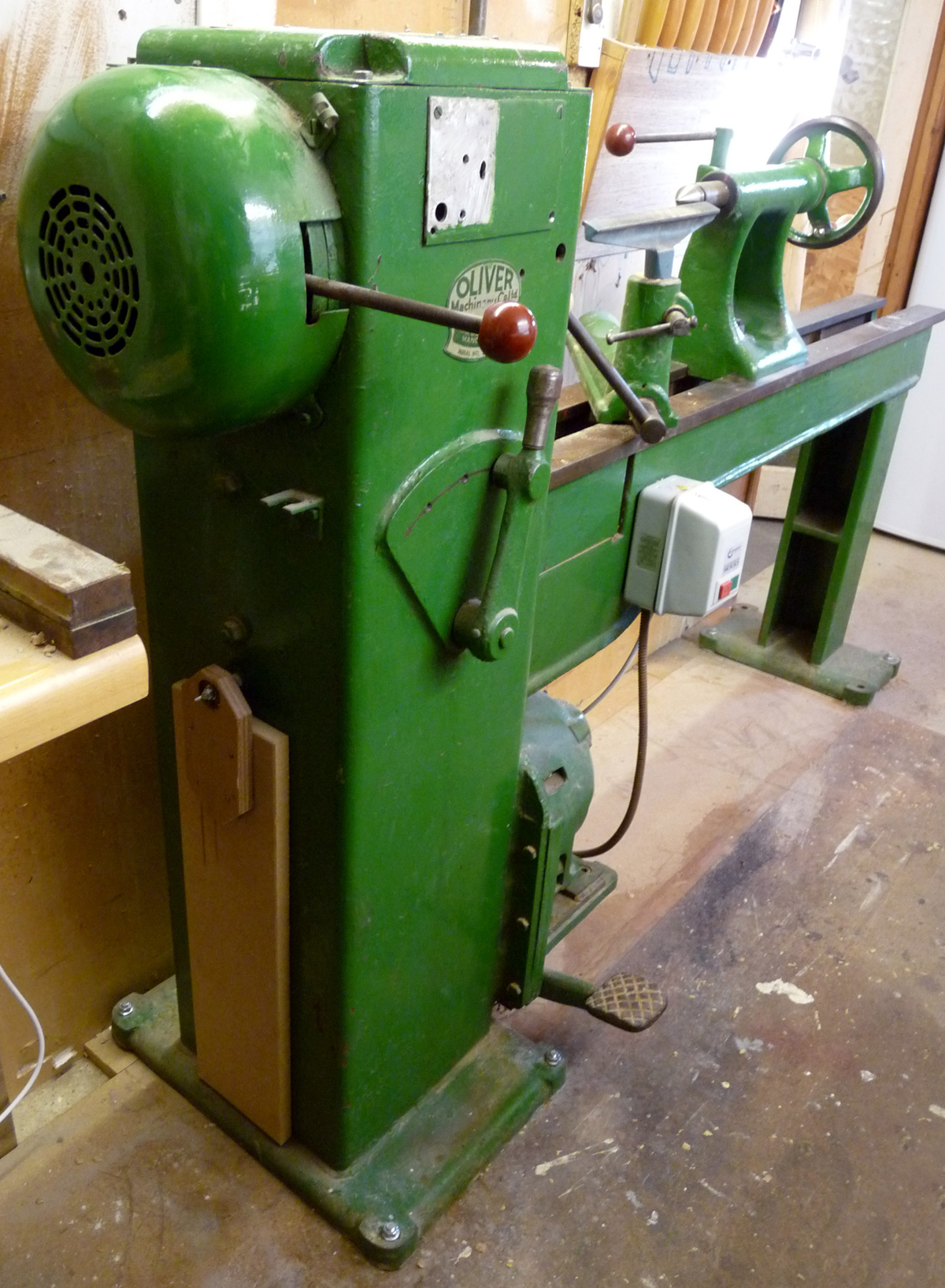

Oliver 6-inch centre height by 42-inches-between-centres Model 94 medium-duty lathe. The headstock-end cabinet was constructed from heavy steel pressings and carried the 1 h.p 1500 r.p.m motor with its fully-enclosed v-belt drive (three speeds were provided of 1000, 2000 and 3000 r.p.m) and a bowl-turning rest assembly mounted on a bracket fastened to its front face. The lathe bed was stepped up in front of the spindle, giving a small extra capacity in the resulting gap. The Model 94 could also be fitted with a rack-driven carriage assembly and compound slide rest (with a cross feed of 4 inches) - giving the machine the capacity to perform very accurate wood turning on patterns, or handle light-duty metal turning.
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Oliver 6-inch centre height by 42 inches-between-centres Model 92 - the smallest and simplest of the Company's wood-turning lathes
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

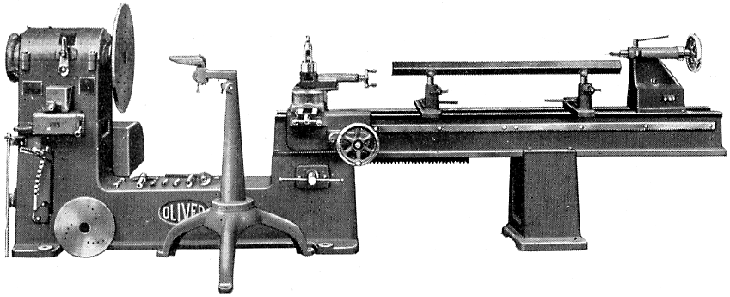

Oliver No. 31 K.F.C. Pattern Makers' 8-inch centre height by 72 inches between centres wood-turning lathe was fitted with a rack-feed carriage surmounted by a compound slide rest for accurate wood and light-duty metal turning. This medium-size machine was unusual for a wood lathe in having not only V ways on the bed, but a detachable, 9-inch wide gap section which was able to accommodate material up to 28-inches in diameter. A two-speed, 2hp/4hp motor and 4-step V-belt drive provided a very useful range of eight spindle speeds: 200, 400, 600, 800, 1100, 1450, 1700 and 2400 r.p.m. - all selected by a built-in quick-change mechanism with a spindle brake was fitted as standard. A separate floor standing bowl-turning rest was provided - as well as a large-diameter faceplate for work held on the outside end of the spindle.
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Oliver Model 136 Sliding-bed Wood-turning Lathe - gap fully open. The lathe was well equipped and properly specified for its intended role as a versatile, heavy-duty machine: the two-speed 3hp/6hp motor drove the headstock spindle both directly and through an intermediate shaft to give a range of 36 speeds spanning 80 to 1630 r.p.m. ; the sliding bed offered the opportunity to accommodate work up to 8 feet long or approximately 32 inches in diameter and a separate, floor-standing toolrest was supplied to allow a reach to any part of work mounted between centres or on a faceplate.
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Oliver Model 136 Sliding-bed Wood-turning Lathe - gap fully closed
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|

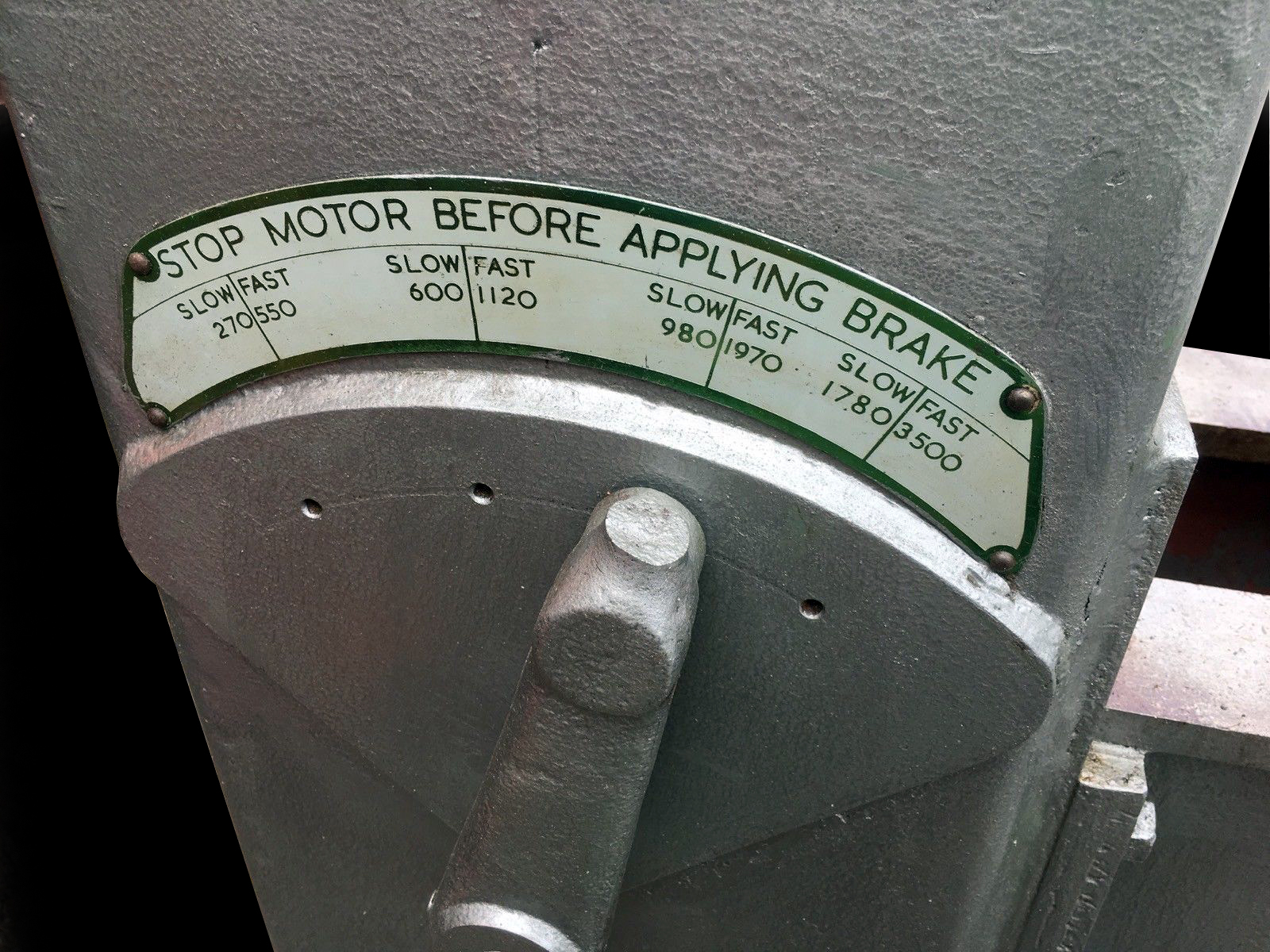

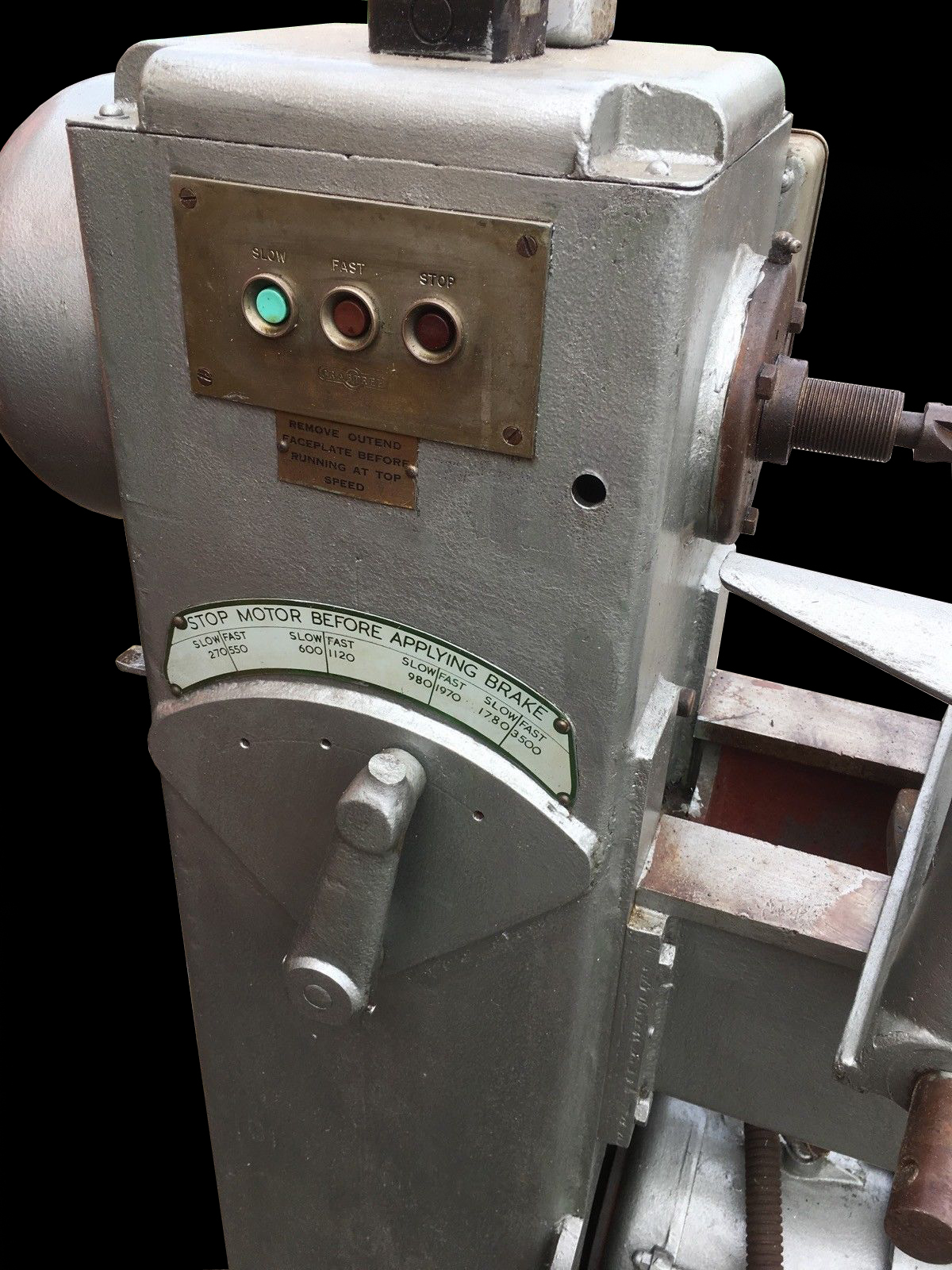

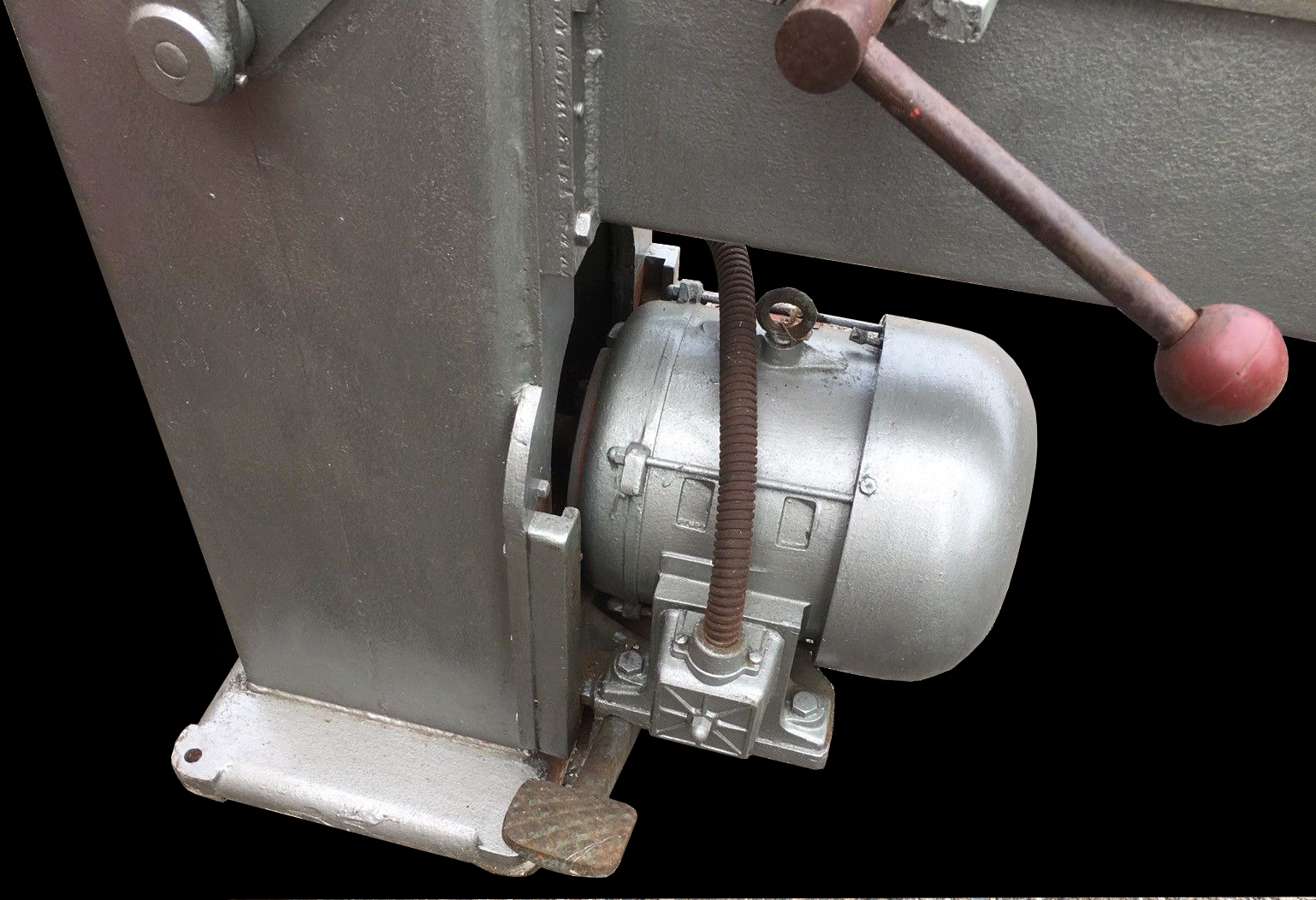

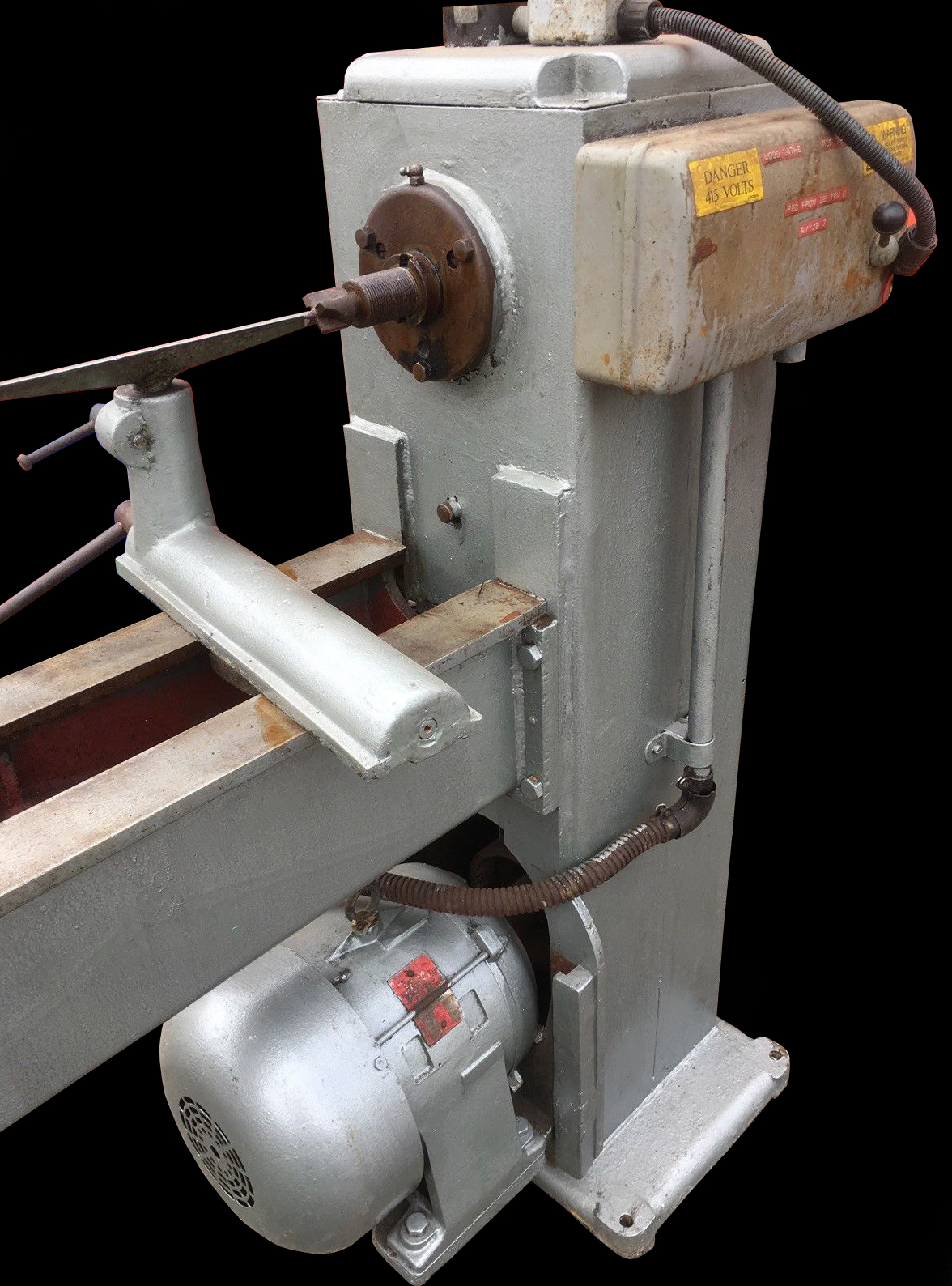

A late development of the Oliver No. 31 K.F.C. Pattern Makers' lathe
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
